Refrigerated / Freezer benches

We offer a wide variety of refrigerated benches in order to fit the design requirement of galley areas. Their design matches exactly the design of our stainless steel furniture so that you enjoy uniformity across your equipment

Download our catalogue

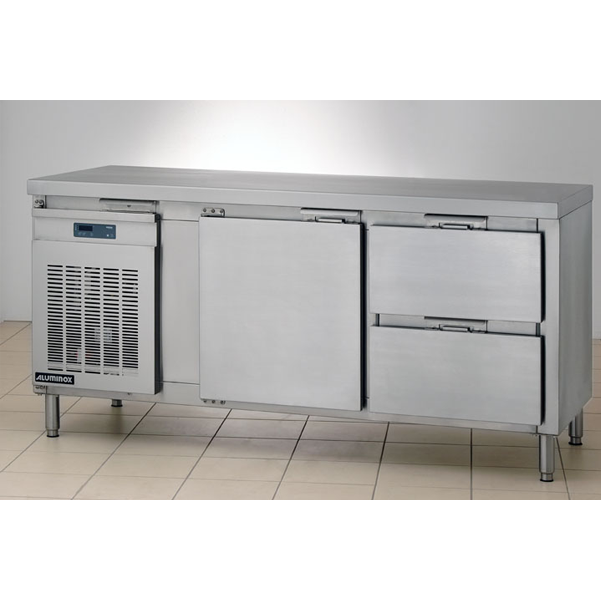

600 line

Indicative specifications include:

  • Suitable for GN 1/3 and 2/3
  • Dimensions from 1025mm up to 2720mm
  • Capacities from 130 up to 360 litres
  • Snack line also available with height 640mm

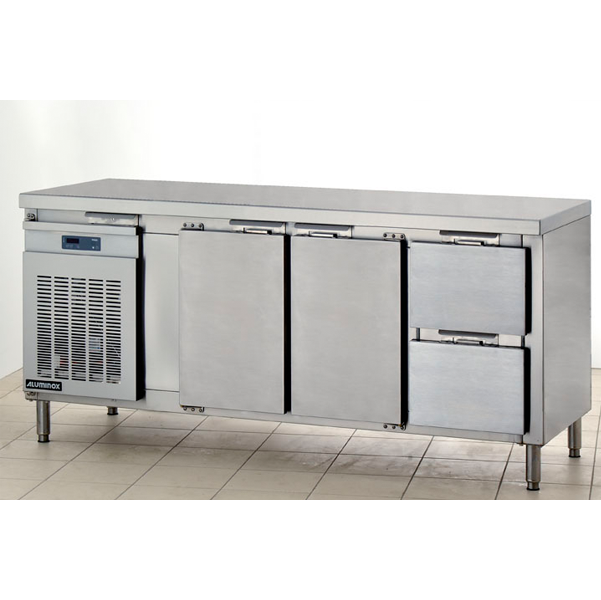

700 line

Indicative specifications include:

  • Suitable for GN 1/1
  • Dimensions from 1025mm up to 2720mm
  • Capacities from 160 up to 740 litres
  • Snack line also available with height 640mm

800 line

Indicative specifications include:

  • 3 versions, each version suitable for 60x40cm, or GN 1/1, or GN 2/1
  • Dimensions from 1520mm up to 2040mm for refrigerators for 60x40mm with capacities from 380 up to 600 litres.
  • Dimensions from 1820mm up to 2040mm for refrigerators for GN 1/1 or GN 2/1 with capacities from 510 up to 700 litres.

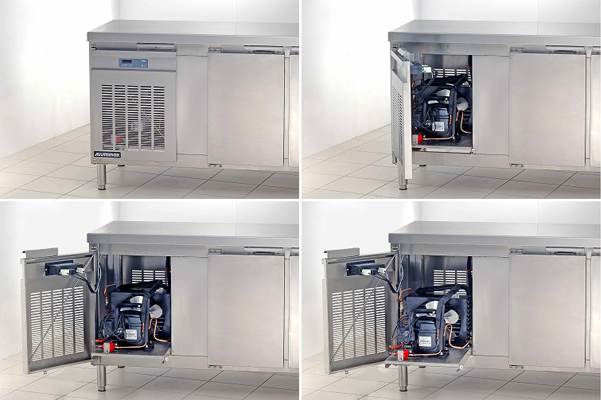

Overall Specifications

General Specifications for all lines include:

  • Operating temperatures, for refrigerators -2oC up to +5oC and for freezers 0oC up to -18oC
  • Doors as standard, with possibility to have drawers in 3 combinations (3 drawers, 2 drawers - one deep and one shallow, 2 drawers of equal depth)
  • Glass doors or glass drawers with led light for refrigerators only as option
  • Remote cooled upon request
  • Heavy duty working surface


Reach in refrigerators

Our standard reach in refrigeration line brings you with line of refrigerators and freezers that can cover most of your needs. They come in 3 lines, 700, 800 and 90, each number corresponds to the depth of each line. They are completely made of stainless steel and special care has been taken in their design to meet the requirements of the marine market.




Overall specifications

  • Standard accessories include 3 grilles (wire shelves) plastic coated (s/s grilles upon request)
  • Light and lock on the door
  • Automatic defrosting, water evaporation and 4 s/s height adjstable legs
  • Freon R-134a
  • Height not exceeding 2040mm with possibility to reduce it to below 2000mm upon request
  • Operating temperature -2oC to +5oC for refrigerators and -20oC to 0oC for freezers

700 line

Indicative specifications for the 700 Line include:

  • Suitable for GN 1/1
  • Single door only, full stainless steel or glass (for the refrigerators only)
  • Capacitiy of 387 litres

800 line

Indicative specifications for the 800 Line include:

  • Suitable for trays 60x40cm, Gn 1/1 or Gn2/1
  • Single door and double doors, full stainless steel or glass (for the refrigerators only)
  • Capacitiy from 455 up to 1315 litres

900 Line

Indicative specifications for the 900 Line include:

  • Suitable for trays 70x50cm
  • Single door and double doors, full stainless steel or glass (for the refrigerators only)
  • Capacitiy from 685 up to 1510 litres
